Product

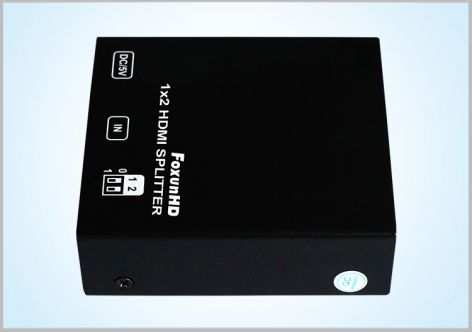

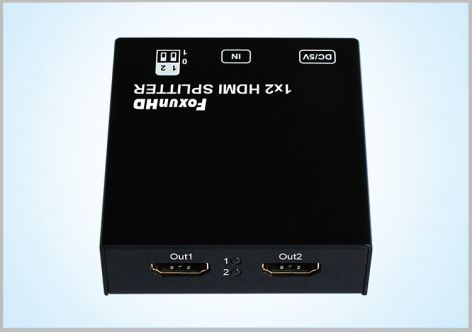

SP01 1x2 4K HDMI Splitter
FX-SP01
1 Feature

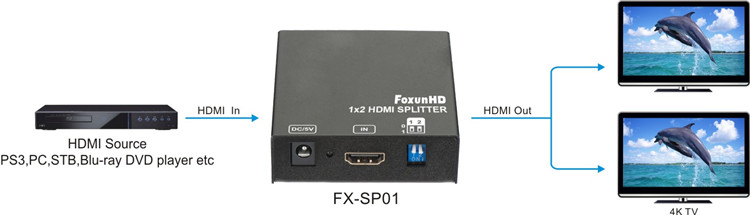

l 1x2 HDMI Splitter, with 1xHDMI input,2xHDMI outputs.
l Resolution reach up to 4Kx2K/30HZ. and 1080p Full HD.
l Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
l Supports LPCM7.1 Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio.
l Support 3D format.
l Supports 36 bit deep color.
l DC 5V1A Power supply.
l Power consumption:2watts
l Dimension (L×W×H):75x68x25.2mm
2 SPECIFICATIONS
|
Operating Temperature Range |
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Ports
|
1xHDMI Female |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Video Format Supported |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support |
|
Output Port |
2xHDMI Female |
|
Support Video Color Format |
Supports 36 bit deep color |
|
Support Audio Format |
LPCM7.1, Dolby, TrueHD, Dolby, Digital plus DTS-HD Master Audio .
|
|
Power consumption |
2watts |
|
Dimension (L×W×H) |
75x68x25.2mm |
|
Net weight |
128g |
