Product

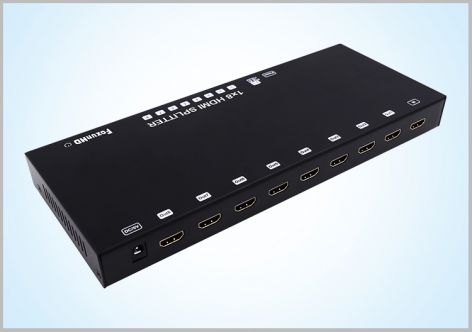

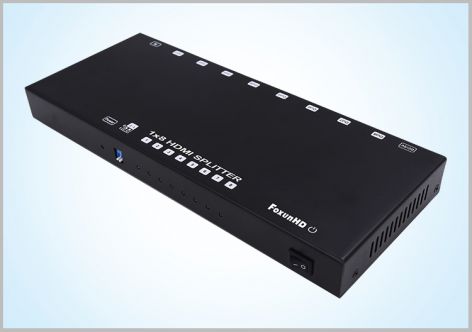

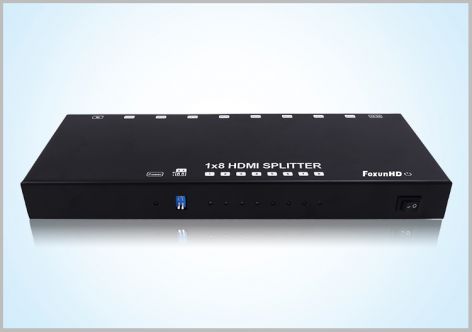

SP148E-HD4k2k 1x8 HDMI Splitter
FX-SP148-HD4k2k
1

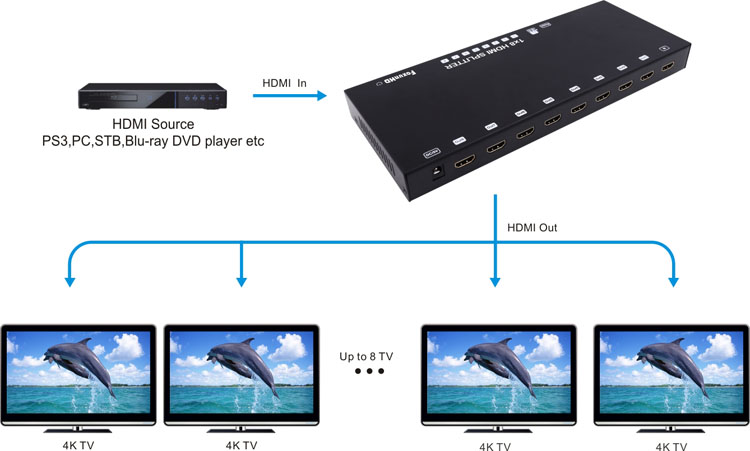

l Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
l Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
l Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
l Supports 36 bit Deep Color.
l Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
l HDCP Compliant.
l Support 3D.
l DC 5V1A Power supply.
l Power consumption:3watts
l Dimension (L×W×H):270x110x27.5 mm
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Bandwidth frequency |
10.2Gbps |
|
Input ports |
1xHDMI(female) |
|
Output ports |
8xHDMI outputs(female) |
|
Resolution outputs |
up to 4Kx2K(3840x2160@60Hz YUV 4:2:0) |
|
Dimensions(LxWxH) |
270x110x27.5mm |
|
Power consumption |
3W(MAX) |
|
Transmission Distance |
15m(Maximum)over standard HDMI cable/26AWG |
|
Net Weight |
840g |
