Product

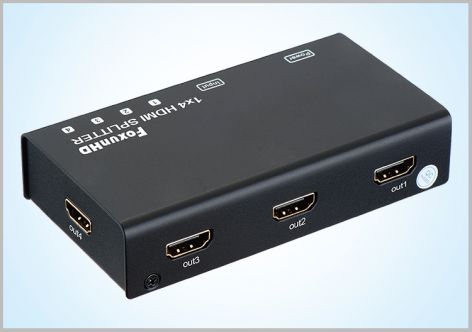

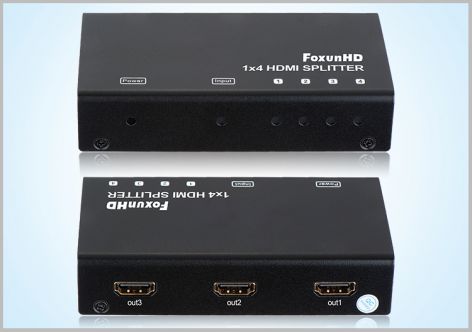

SP144E-HD4K2k 1x4 HDMI Splitter
FX-SP144E-HD4k2k
1

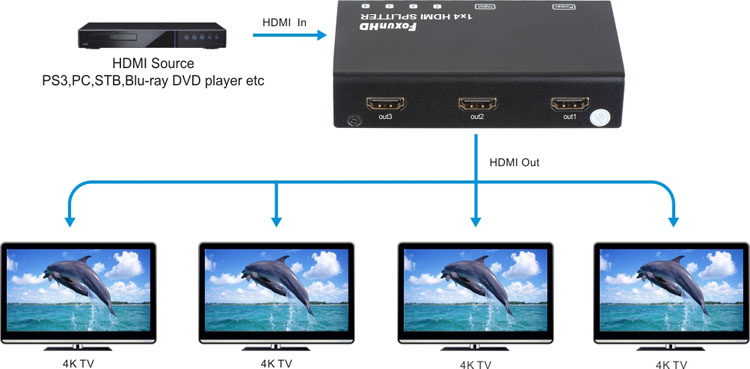

l lSimultaneously displays an UItra Hi-Def source on up to four UItra HD displays.
l lSupports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
l lSupports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
l lSupports 36 bit Deep Color.
l lSupports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
l Supports HDMI input/output cable 10 to 15metres at 1080p/8-bit resolution
l lHDCP Compliant.
l lSupport 3D.
l DC 5V1A Power supply.
l Power consumption:1watts
l Dimension (L×W×H):115x62x25mm
2 SPECIFICATIONS
|
Operating Temperature Range |
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Bandwidth frequency |
10.2Gbps |
|
Input Ports |
1xHDMI Female |
|
Output ports |
4xHDMI outputs(female) |
|
Resolution outputs |
Up to 4k x2k(3840x2160@60Hz YUV 4:2:0) |
|
Transmission Distance |
15m (Maximum) over standard HDMI cable/26AWG |
|
Power consumption |
1watts |
|
Dimension (L×W×H) |
115x62x25mm |
