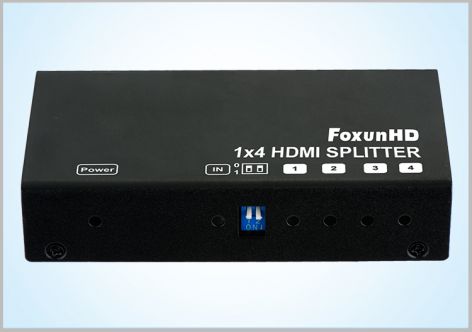

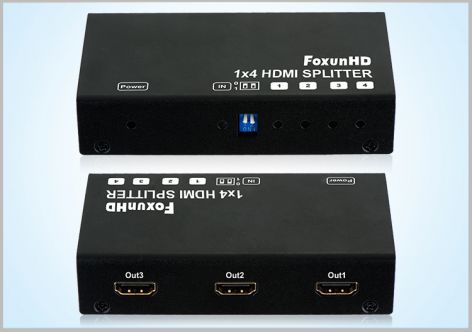

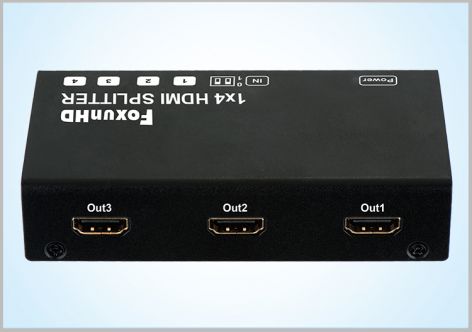

SP02 1x4 4K HDMI Splitter
FX-SP02
1 Feature
l 1x4HDMI Splitter,Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays.
l Resolution reach up to 4Kx2K/30HZ. and 1080p Full HD.
l Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
l Supports LPCM7.1 Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio.
l Support 3D format.
l Supports 36 bit deep color.
l DC 5V1A Power supply.
l Power consumption:2watts
l Dimension (L×W×H):115x62x25mm
2 SPECIFICATIONS
|
Operating Temperature Range |
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Bandwidth frequency |
10.2Gbps |
|
Input Ports |
1xHDMI Female |
|
Output ports |
4xHDMI outputs(female) |
|
Resolution outputs |
Up to 4k x2k(3840x2160@60Hz YUV 4:2:0) |
|
Transmission Distance |
15m (Maximum) over standard HDMI cable/26AWG |
|
Power consumption |
2watts |
|
Dimension (L×W×H) |
115x62x25mm |
|
Net Weight |
210g |

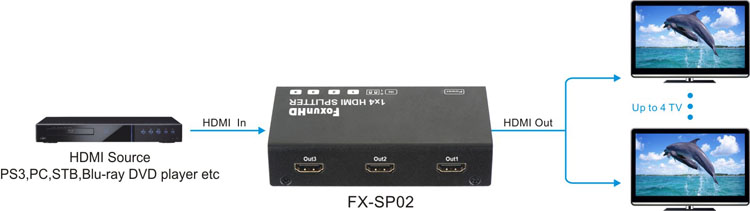

CONNECT AND OPERATE
1) Connect the HDMI sources (such as PS3, STB, DVD, ETC) to the FX-SP02.
2) Connect HDMI displays (such as HDTV, HD-LCD) into the HDMI outputs of the FX-SP02.
3) Connect DC 5V1A power to the power port of the FX-SP02.
