EX46 60m HDMI USB KVM Extender
FX-EX46
1 Feature
l Each set includes one transmitter and one receiver
l Transmit distance to 100m over single Cat5e/6 cable
l Transmit distance up to 60m over single Cat5e/6 cable under USB Mode
l USB 2.0 pass through
l Support Full HD 1080P
l Power Supply DC12V
l Power Consumption：TX:1.2watts;RX:2.6watts
l Dimension (L×W×H):84.2×75.2×27.5mm
l Net Weight:Receiver:0.41kg (Pairs)
2 SPECIFICATIONS
|
Operating Temperature Range |
-10 to +50℃(14 to +122℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Support Video Format |
DTV/HDTV: 480P/576P/720P/1080P
VESA:640x480, 800x600, 1024x768, 1280x1024,
1680x1050, 1280x720, 1360x768 |
|

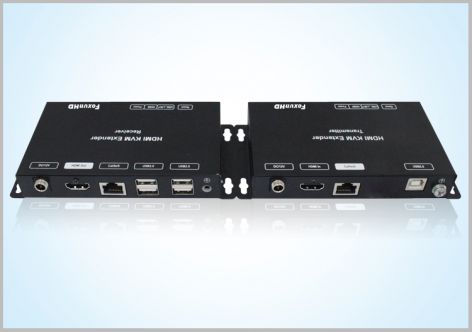

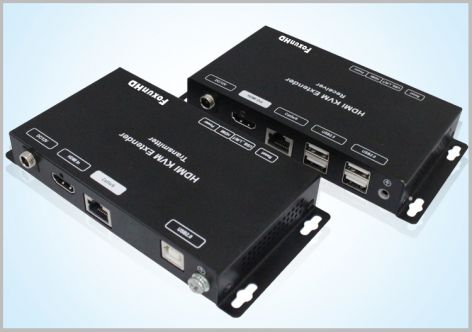

Connector on Transmitter |
1x HDMI Input , 1x USB B Type
1xRJ45 Output |
|

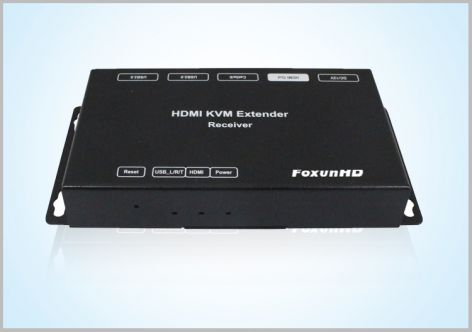

Connector on Receiver |
1xRJ45 Input
1x HDMI Output, 2x USB A Type |
|
Transmission Distance |
100m over single Cat5e/6 /24AWG/Solid under Non-USB Mode
60m over Single Cat5e/6 /24AWG/Solid under USB Mode
|
|
USB Distance |
480M bit/s |
|
Power consumption |
Transmitter : 1.2W
Receiver : 2.6W |
|
Dimension (L×W×H) |
L84.2xW75.2xH27.5mm |
|
Net Weight |
Transmitter:205g ; Receiver:205g |
CONNECT AND OPERATE

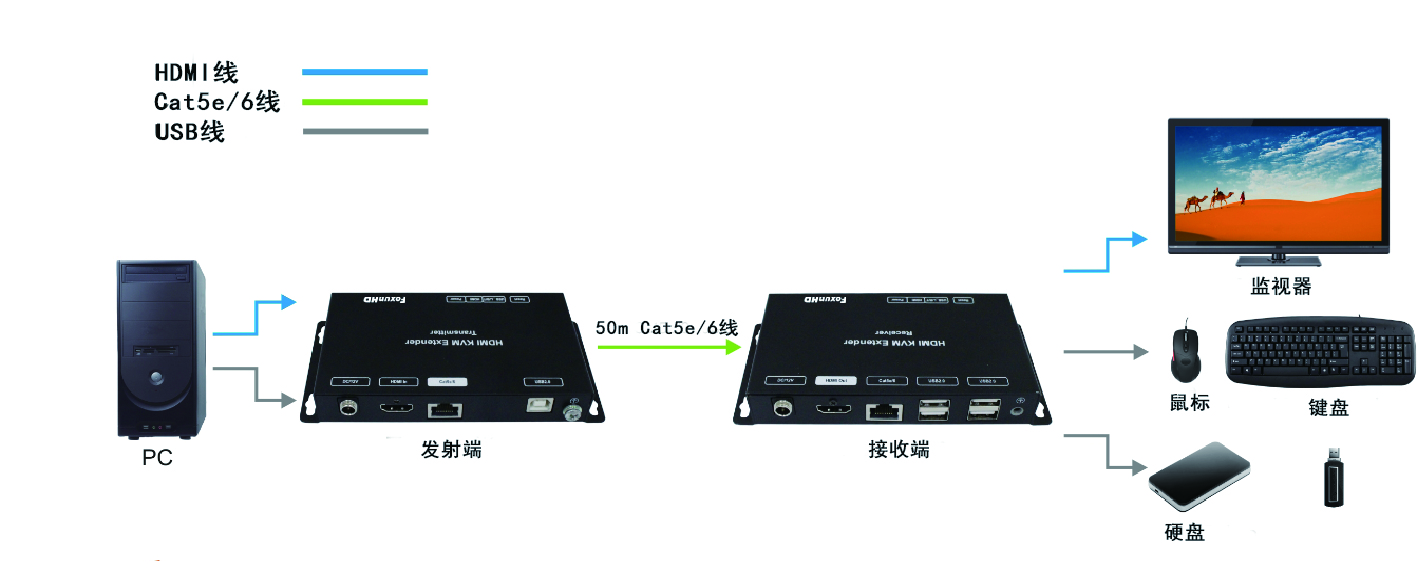

Application 1: KVM
1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit
2. Connect one HDMI Cable between the HDMI input port of display and the HDMI output port of Receiver unit.
3. Connect one UTP Cat5e or better cable between the RJ45 port of Transmitter unit and RJ45 port of Receiver unit.
4. Connect the PC to the transmitter by USB AM-USB BM cable.
5. Connect keyboard, mouse to the receiver.
6. Connect 12V DC power supplies to both Transmitter unit and Receiver unit.
Point to point configuration:
1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit
2. Connect one Cat5e/6 or better cable between the Transmitter and Receiver
3. Connect one HDMI cable between the HDMI Input of the display device and the HDMI Output port of the Receiver unit
