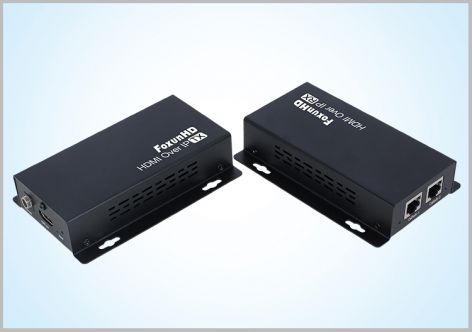

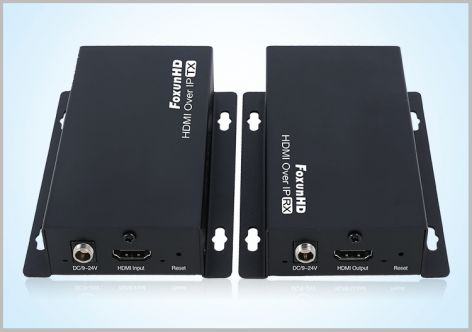

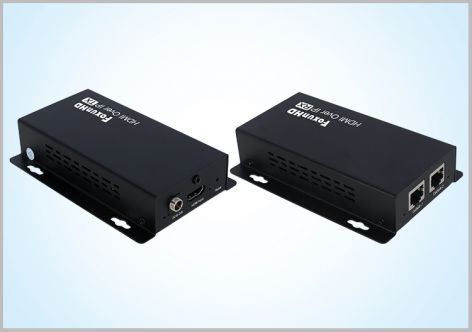

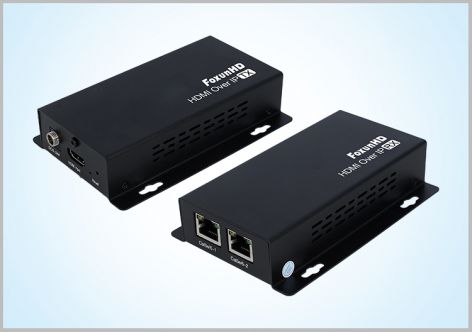

EX38 120m HDMI Extender Over IP
FX-EX38
1 Feature
l Each set includes one transmitter and one receiver
l Transmit over 120m single cat5e/6 cable with standard of IEEE-568B
l Support high definition resolution up to Full HD 1080p
l Support TCP/IP protocol
l Support cascade by adding more receivers
l HDCP compliant.
l Power Consumption：TX:2.5watts;RX:2.54watts
l Dimension (L×W×H):124.6×84×27mm
l Net Weight:TX:240g,RX:240g
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90 % RH (no condensation) |
|
Output Video |
HDMI,HDCP |
|
Audio Sampling rate |
44kHz and 48kHz PCM |
|
Video Format Supported |
Full HD 1080p |
|
Output Video |
HDMI+HDCP |
|
TX |
Default IP address:192.168.168.55 |
|
RX |
Default IP address:192.168.168.56 |
|
Transmission Distance |
120 meters over single cat5e/6 24AWG/Solid |
|
Power Supply |
12V2A |
|
Power Consumption |
2.5Watts (EX38-TX)
2.5Watts (EX38-RX) |
|
Dimensions（LxWxH） |
124.6×84×27mm |
|
Net Weight |
TX:240g,RX:240g |

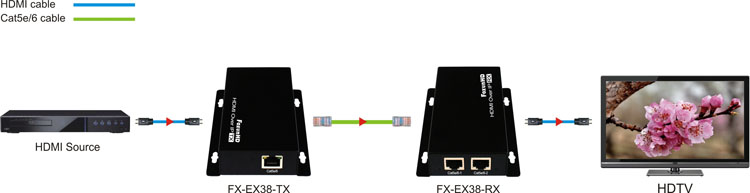

CONNECT AND OPERATE
1) Connect the HDMI input source (such as HD-DVD, PS3, STB etc.) to Transmitter.
2) Connect a Cat5e/6 cable from cat5e/6 output of transmitter to cat5e/6-1 or cat5e/6-2 port of receiver.
3) Connect Cat5e/6 cable from another cat5e/6 port of receiver to the next receiver
4) the HDMI sink(such as HD-LCD、HD-DLP) to receiver.
1) Unicast
2) Unlimited casecade connection
