Product

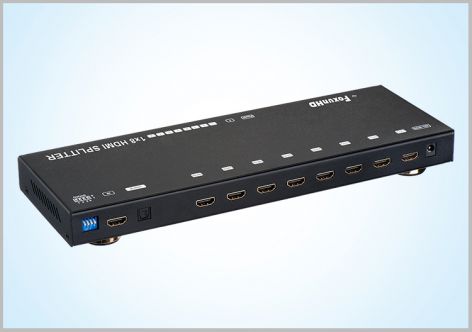

SP18-Audio 1x8 HDMI Splitter, Audio Extraction
FX-SP18-Audio
1 Feature
l 1x8 HDMI Splitter, with 1xHDMI input, 8xHDMI outputs, 1xAudio output via optical.
l Resolution reach up to 4Kx2K.
l Advanced EDID management for rapid integration of sources and displays.
l With Audio extraction via optical cable.
l Support 3D format.
l
Supports LPCM7.1 Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio .
l Supports 36 bit deep color display.
l Bandwidth: 9Gbps .
l DC 5V3A Power supply.
l Power consumption:8watts
l Dimension (L×W×H):320x115x37mm
l Net Weight:1050g .
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
1 HDMI Input |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Video Format Supported |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support |
|
Video Output |
8 HDMI Female |
|
Output Video Bandwidth |
300MHz |
|
Output Audio Signal |
1xOptical port |
|
Support Video Color Format |
Deep color 36bit |
|
Support Audio Format |
|
|
Power consumption |
8watts |
|
Dimension (L×W×H) |
320x115x37mm |
|
Net Weight |
1050g |
