SDH1 SDH1 SDI to HDMI Converter, With 1xlooping SDI
FX-SDH1
1 Feature
l Convert SD/HD/3G-SDI to HDMI

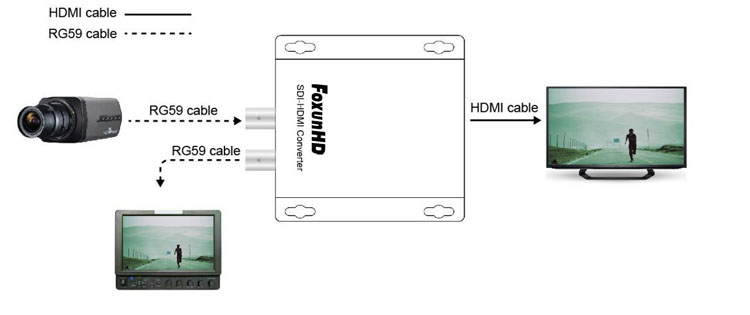

l Distribute 1 SD/HD/3G-SDI to 1 HDMI plus 1 looping SDI output simultaneously
l Support SDI input resolutions:
1080p (50/60/59.94/30/29.97/24/23.98Hz)
1080i (60/59.94Hz), 720p (60/59.94/50Hz), 576i (50Hz), 480i (60/59.94Hz)
l Work with HSD1/HSD2 to cascade many layers
l Support transmission distance up to 100m over RG59 cable
l With mounting ears
l Support 5V 1A.
l Dimension (L×W×H):95x95x29mm
l Net Weight:245g
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉)
|
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Resolutions Formats |
1080p@23.98/24/25/29.97/30/50/59.94/60HZ; 1080i@50/59.94/60HZ;
576i @50HZ;
480i@59.94/60HZ |
|
SDI Standard
|
3G-SDI/HD-SDI/SDI |
|
Input |
1x SDI(BNC) |
|
Output |
1x SDI(BNC) , 1x HDMI ( Standard Type A connector )
|
|
Output Impedance |
75ohms |
|
Power consumption |
2.5watts(Maximum) |
|
Dimension (L×W×H) |
95x95x29mm |
|
Net Weight |
245g |
