TVH1 TVI to HDMI Converter, With 1xlooping TVI output

Item No.: FX-TVH1
Series: Product
Category: SDI Switch &Repeater

Skype Email

Products Details Wiring diagram Manual download

FX-TVH1

1 Feature

l Convert HD-TVI to HDMI, with 1xlooping TVI output

l Support TVI 720P, 960P, 1080P input

l Max output support HDMI 1080p@60Hz

l Support transmission distance up to 300m over RG59 cable

l With mounting ears

2 SPECIFICATIONS

Product	HD-TVI to HDMI Converter
Input	1x TVI
Output	1x TVI, 1x HDMI
Interface	HDMI A - Male HD-TVI (720P, 1080P)/BNC
TVI Input Resolution	1080P, 960P, 720P, 960H, CVBS
HDMI Output Resolution	1920x1080p(60/50)Hz
Temperature	Operating temperature. -5 to +65℃(+23 to +149℉) Relative Humidity. < 85% Storage temperature. -10 °C - 85 °C (14~176°F)
Dimensions	120(L) x 65(W) x 25(H) mm (4.75 * 2.56 * 1 Inch)
Housing	Aluminum Alloy

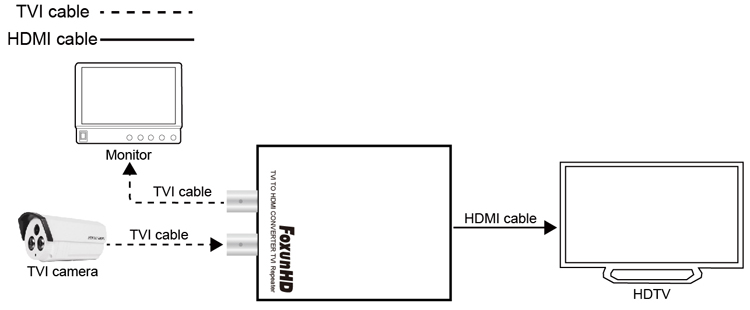

CONNECT AND OPERATE

1) Ensure the Converter is disconnected from power.

2) Connect source to the TVI input and sink to HDMI output and TVI output.

3) Connect 5V1A DC power to the converter.

Attention: Insert/Extract cable gently
