Product

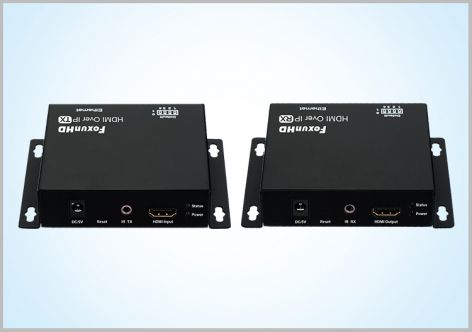

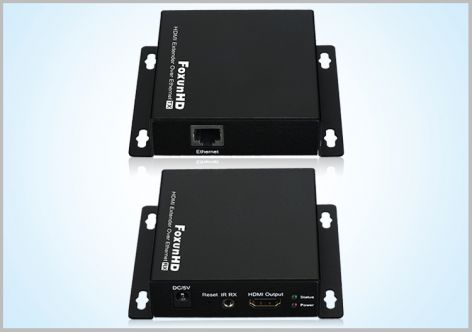

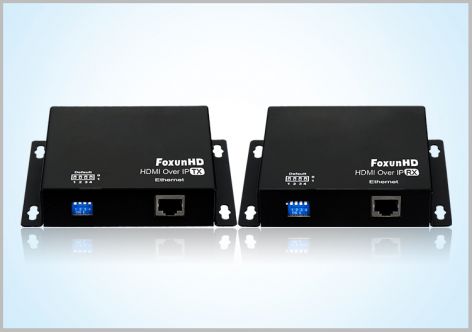

E120 120m HDMI Extender over IP
FX-E120
|
Model |
Different |
|
FX-E120 |
Without POE |
|
FX-E120P |
With POE |
1 Feature
l Uses off-the-shelf gigabit IP switches for extension and distribution
l Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
l Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading

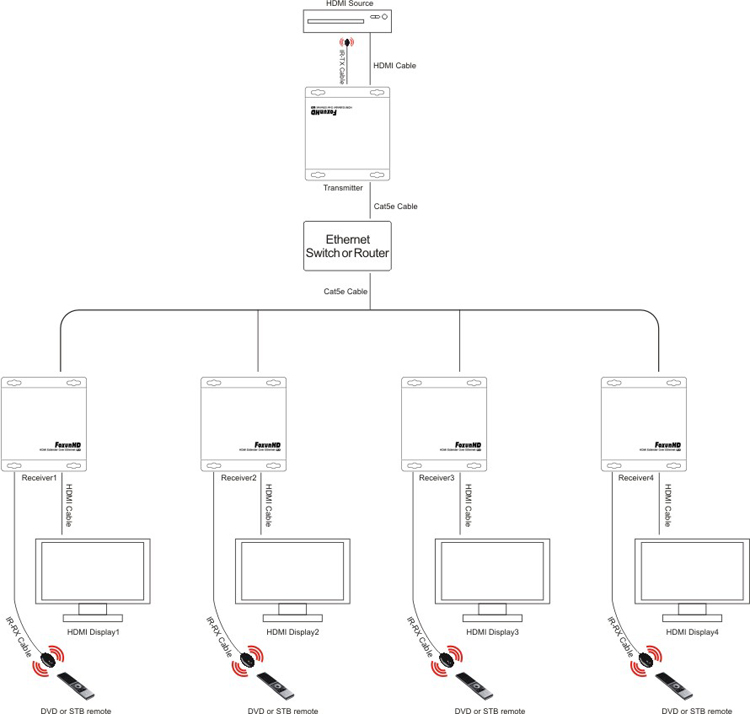

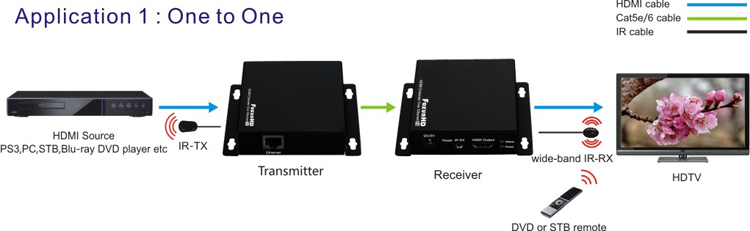

l Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
l With IR Control function ,it allows you control back the source at the end of destination
l Can be cascaded for many layers by adding Ethernet switches
l DC 5V/1A x2 PCS Power Supply.
l Power Consumption：TX:3watts;RX:3watts
l Dimension (L×W×H):103.5x93.5x24.6mm
l Net Weight:Receiver:220g,Transmitter:220g
2
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P |
|
Video Output |
|
|
Transmission Distance |
1080P 8-bit 120m over single CAT5E/6 /24AWG/Solid |
|
Power consumption |
TX:3watts;RX:3watts |
|
IR frequency |
38kHz-56kHz |
|
Dimension (L×W×H) |
103.5x93.5x24.6mm |
|
Net Weight |
Receiver:220g,Transmitter:220g |
|
TX |
Default IP address:192.168.168.55
MAC address:00:0b:78:00:60:01 |
|
RX |
Default IP address:192.168.168.56
MAC address:00:0b:78:00:60:02 |
