Product

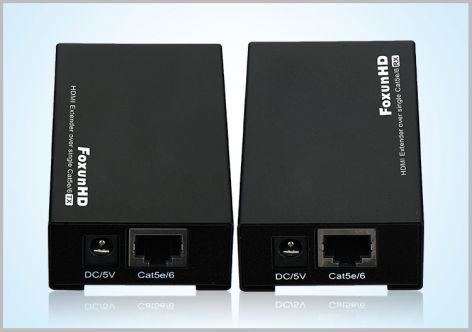

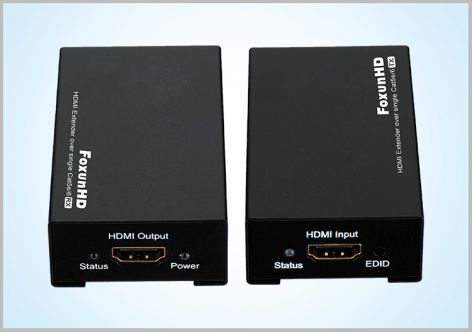

E50 50m HDMI Extender over Single Cat5e/6
FX-E50
1 Feature
l lEach set includes one transmitter and one receiver.
l lEasy installation, no need setting.
l lTransmission Over 50m single CAT5e/6 without signal loss.
l lSupports Deep Color up to 24 bits.
l lSupports 3D.
l lSupports lossless compressed digital audio: Dolby TrueHD, DTS-HD Master Audio.
l lDC 5V power supply.
l EDID copy function.
l Power Consumption：TX:5watts;RX:5watts
l Dimension (L×W×H):83x48x25mm.
l Net Weight:250g(pair)
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
3D video format |
|
Video Output |
|
|
Support Audio Format |
DTS-HD Master Audio、Dolby true-HD etc. |
|
Transmission Distance |
1080P 8-bit 50m(Maximum) over single CAT5E/6 /24AWG/Solid |
|
Power consumption |
5watts |
|
Dimension (L×W×H) |
83x48x25mm |
|
Net Weight |
250g(pair) |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
