HC01 4K HDMI Audio Extractor
Feature
l Extract the digital HDMI audio signal from the HDMI input to 2 channel
l analog stereo output or 5.1 channel Audio output
l Support resolution up to 4k@30Hz
l Supports deep color up to 36bit
l Support 3D
l Three Audio EDID Settings: 2.0CH/5.1CH/By pass
l Supports Apple TV and various Blu-ray player, satellite receivers
l Power consumption: 3W
l Dimension (L×W×H):89.2x66.7x25mm
l Net Weight:175g
SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 Volts P-P(TTL) |
|
Support Video format |
4kx2k/1080P/1080i/720P/576P/576i/480p/480i 3D video |
|
Support Video Color format |
Xv-YCC/deep color 36bit |
|
SupportAduio format |
DTS-HD Master Aduio/Dolby true-HD etc. |
|
Data transfer speed rate |
10.2Gbps |
|
Power consumption |
3Watts |
|
Dimension (L×W×H) |
89.2*66.7*25mm |
|
Net Weight |
175g |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate

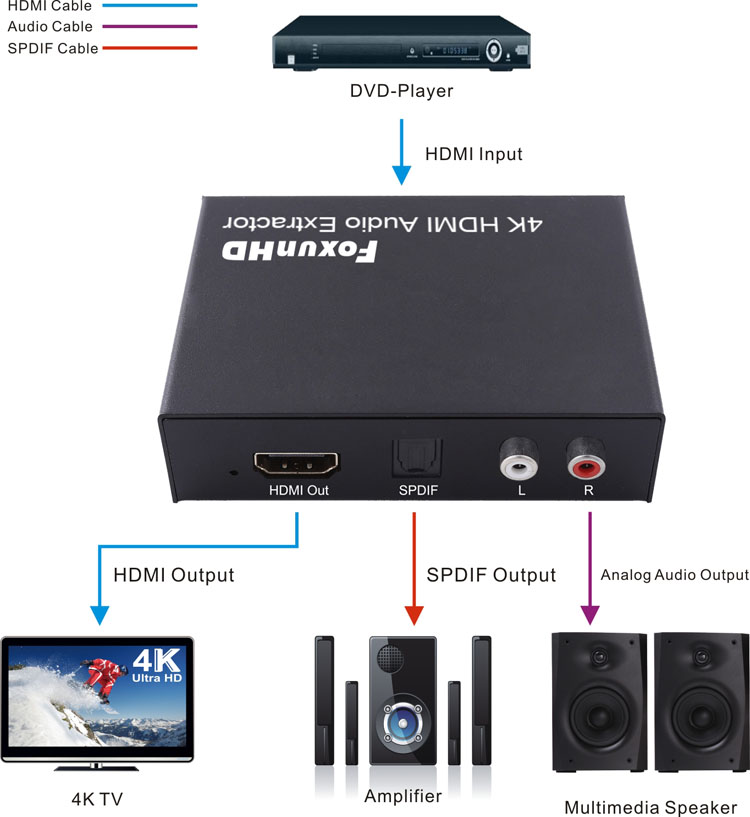

Connecting and Operating
1)Connect the HDMI signal source (Such as PS3, STB etc) into HDMI input of 4K HDMI Audio Extractor.
2)Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output of 4K HDMI Audio Extractor.
3)Connect Optical audio cable or RCA audio cable to Amplifier.
4)Connect DC 5V power to the 4K HDMI Audio Extractor.
