DVI KVM Extender Over Single Cat5e/6 with IR EX43
FX-KVM02
|
Model |
Distance |
Technology |
|
FX-EX43 |
50m |
---- |
|
FX-EX43 |
70m |
|
|
FX-EX43 |
100m |
1 Feature
l Use single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute DVI cable to extend longer transmission distance, transmitter up to 70m.
l Support 8KV ESD protection.
l Support TMDS equalization and enhancement.
l Support EDID pass through via LAN, for best compliance with most display devices.
l Support lnfrared control signal pass through via LAN.
l By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely.
l With customized remote button, it is easy to turn on PC remotely.
l Support 1920x1080@60Hz.
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Video Input(Transmitter) |
DVI D female |
|
Video Output(Receiver) |
DVI D female |
|
Bandwidth |
10.2Gb/s |
|
Link(Transmitter/ Receiver) |
transmit 1920x1080@60Hz over 70m single cat5e/6 |
|
Resolution |
1920x1080@60Hz |
|
Impedance |
100Ω |
|
Power |
DC 5V 1A |
|
HDCP Input |
HDCP 2.2, HDCP 1.4 |
|
HDCP Output |
HDCP 1.4 |
|
Power consumption |
Transmitter: 6watts; Receive: 6watts
|
|
Dimension (L×W×H) |
90.2x103.3x29.3 |

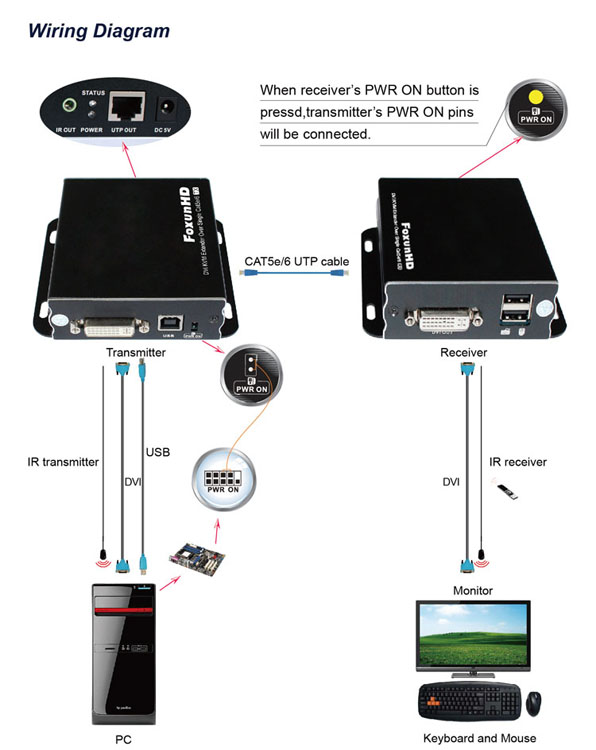

CONNECT AND OPERATE
1) Connect the DVI source (Such as PC) to DVI Transmitter.
2) Connect cat5e/6 cables to both UTP output port of the transmitter and UTP input port of the Receiver.
3) Connect the Receiver to the Monitor, keyboard, mouse.
4) Connect 5VDC power supplies to both Transmitter unit and Receiver unit.
