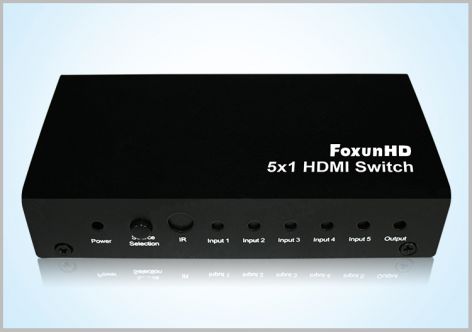

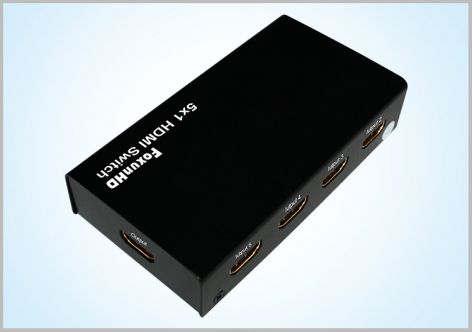

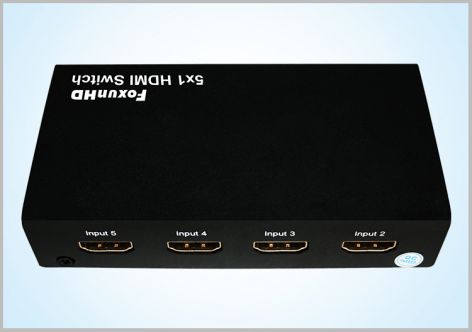

SW04-4k2k 5x1 HDMI Switch with remote
FX-SW04-4k2k
1 Feature
l Select one of 5 different HDMI Signal input sources and switch to 1 HDMI display.
l Manual or with remote controller to select input signals.
l Supports 30/36bit deep color display.
l Support High Definition Audio : Dolby TrueHD, DTS-HD Master Audio
l Auto Signal Enhancement feature can improve signal quality after long distance transmission.
l Supports Resolution up to4kx2k
l Power consumption:4watts
l Dimension (L×W×H):115x62x25mm
l Net Weight:212g .
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video format |
DTV/HDTV:4kx2k/1080P/1080i/720P/576P/576i/480P/480i
3D video |
|
Support Video Color Format |
xv-YCC/deep color 36bit |
|
Support Audio Format |
DTS-HD Master Audio、Dolby true-HD etc. |
|
Data transfer speed rate |
6.75Gbps |
|
Power consumption |
4watts |
|
Transmission Distance |
15m over standard HDMI cable/26AWG |
|
Dimension (L×W×H) |
115x62x25mm |
|
Net Weight |
212g |

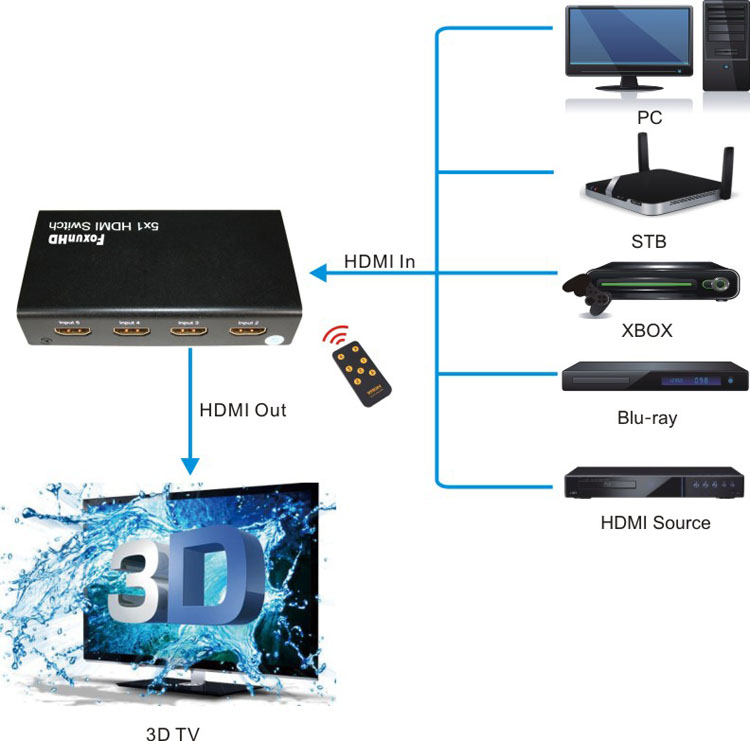

CONNECT AND OPERATE
1) Connect the HDMI signal sources (Such as PS3, STB etc) into HDMI input.
2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output.
