SMX99 Full-HD 9x9 Seamless HDMI Matrix With 3x3 Multi-View
FX-SMX99
1 Feature
l Any one of the 9 sources to any one of the 9 displays
l Seamless switching ensures no switching dealy and pictures loss during
Transitions, the switching speed is less than 1 second
l Creat a 3x3 multi-view on the 9th output port
l Support high definition resolutions up to Full HD 1080p
l With audio extraction for each output (optical audio output)
l With Panel Button, Remote Control, RS232 Control, IP Control to select the
source
l Support Saving and Reading modes
l 1U rack design, easy installment
l DC 12V 3A power supply
l Size: L438xW220xH44mm
l Weight:3.38kg
2
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90 % RH (no condensation) |
|
HDMI Version |
HDMI 1.3/DVI |
|
HDCP |
Yes |
|
Video Input Port |
9xHDMI |
|
Video Output Port |
9xHDMI |
|
Audio Output |
9xAudio |
|
Control |
Button,IR,RS232 or TCP/IP |
|
Power Consumption |
25wtts |
|
Housing |
Metal |
|
Dimensions(LxWxH) |
440×256×42mm/17.3''L×10'W×1.65''H |
|
Mass (Main Unit) |
3.38kg/7.45lb |

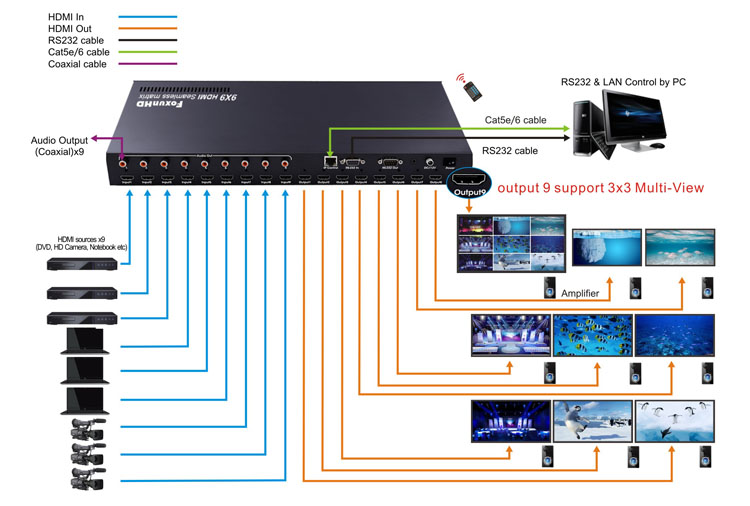

CONNECT AND OPERATE
1) Connect source devices to input ports of FX-SMX99.
2) Connect HDMI output port to TV or other HDMI sink devices.
3) Optional: Connect the IR Cable to the IR Port.
4) Optional: Connect RS232 cable from PC RS232 port (or USB-RS232 converter) to SX-SMX99.
5) Optional: Connect Audio (Coaxial) cable to the Audio output port.
6) Optional:Connect an Ethernet cable from the TCP/IP port on the matrix to a local Area Network.
7) Connect 12V/3A power supply to DC power socket.
8) Power on the FX-SMX99, TV and other devices.
9) Control FX-SMX99 by using buttons on the front panel.
