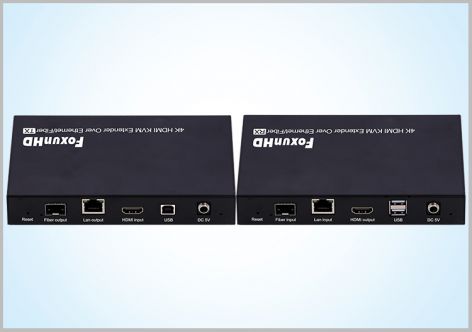

EX57 4K HDMI+USB KVM Extender over IP / Fiber
FX-EX57
1 Feature
1) 4k UHD HDMI over IP/Fiber Extension
2) USB2.0 over IP extension
3) Support transmission distance 120m over single Cat5e/6 cable
4) Support Fiber optical up to 60KM (Single Mode)
5) Support input 4k@60hz YUV 420 (Max), output 4k@30hz (Max)
6) HDCP 2.2 / HDCP1.4 compliant
7) Support Bi-Directional Wide Band IR (38KHZ-56KHZ) Pass through
8) Support RS232 pass through and control, Telnet command
9) With IR remote/Button to control the Group ID, with LED to show the Group ID
10) Support Dolby True HD, DTS-HD Master Audio
11) Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
12) Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction

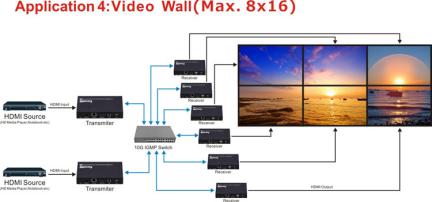

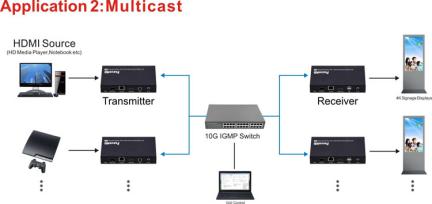

13) Support Unicast, Multicast, Video Wall system (Max 8x16), Output video Rotation
14) 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
15) Support 3D
16) Support 5V-18V
17) Power Consumption：TX:3watts;RX:3watts
18) Dimension (L×W×H):TX:170x109x26mm; RX:170x109x26mm
19) Net Weight:TX:472.8g; RX:472.3g
2 SPECIFICATIONS
|
Performance |
|
|
Protocol |
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 |
|
Support Video format |
4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i |
|
Support Audio format |
Stereo 192Kbps |
|
HDCP |
HDCP 2.2 Compliant |
|
IR Frequency |
38 -56 KHZ |
|
RS232 Baud rate |
Default 115200bps, total 8 kinds optional |
|
IP setting &Group ID setting |
|
|
Default IP |
Automatic allocation |
|
Group ID |
Group 00 ~ group 99 |
|
Request for Switch/Router |
Support IGMP, support DHCP |
|
Connectors on Transmitter |
|
|
Input |
1xHDMI Female port, 1xUSB B type,
1xanalog Audio line in, 1xSPDIF Audio input |
|
Output |
1x RJ45 output, 1x Fiber output |
|
RS232 |
Phoenix RS232 port |
|
IR |
1x IR TX port(Support 38K-56KHz);
1x IR RX port(Support 38KHz) |
|
Connectors on Receiver |
|
|
Input |
1xRJ45 input, 1x Fiber input |
|
Output |
1x HDMI Female port, 2x USB A type, 1xSPDIF Audio output, 1xAnalog Audio output |
|
RS232 |
Phoenix RS232 port |
|
IR |
1x IR TX port(Support 38K-56KHz);
IR Ext Port(Support 38KHz) |
|
Environmental & Power Requirements |
|
|
Operating temperature |
-5 to +35 ℃ （+23 to +95℉） |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Power supply |
DC 5V |
|
Power consumption |
3 watt |
|
Physical |
|
|
Dimension |
TX: 170x109x26mm ; RX: 170x109x26mm |
|
Net Weight |
TX: 472.8g ; RX:472.3g |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
CONNECT AND OPERATE
1) Check the power supply is unplugged.
2) Set up the group of the transmitter with the correspondent receiver for signal extension and display.
3) Connect the Transmitter to video source with HDMI cable, and connect Receiver to a monitor or display with HDMI cable.

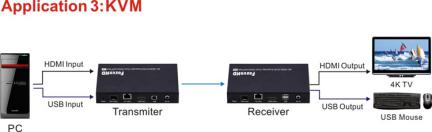

4) Connect the USB cables from Transmitter to PC, and connect the USB additional devices such as USB mouse, USB keyboard and USB pen drive to Receiver.
5)Connect Transmitter and Receiver to the Ethernet switch with network cable.
6)Power on the Transmitter, Receiver and all the connected devices.
7)Power on and activate all the connected devices.
8)Connect the IR extension cable with Transmitter and the IR receiver cable with Receiver for remote control.

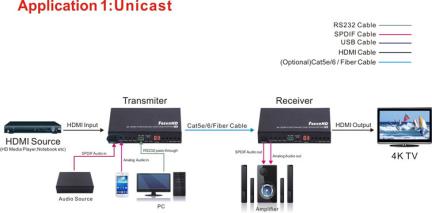

Application
