FoxunHD EW60-3DIR 60m HDMI Extender over single cat5e/6

【FoxunHD】FoxunHD EW60-3DIR 60m HDMI Extender over single cat5e/6;user can transmit Full HD 1080p video over 60m single cat5e/6 by EW60-3DIR .support 3D video and IR control; you can apply to entertainment, business,education etc. Improve the elastic demand.

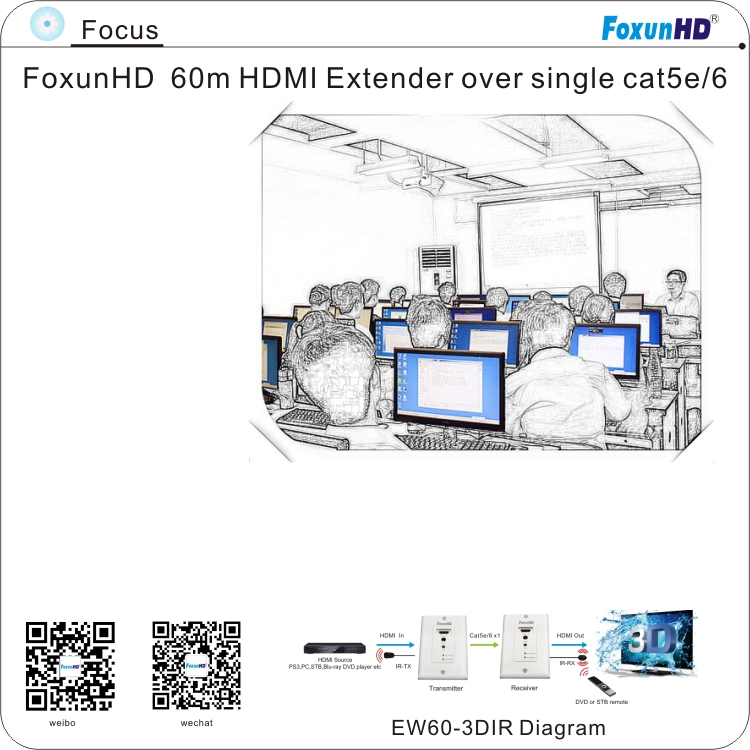

CONNECT AND OPERATE

1) Connect the HDMI input source (such as HD-DVD/PS3/STB etc) into transmitter .

2) Connect one CAT5E or CAT6 cable to both the output of transmitter and input of receiver.

3) Connect the HDMI display (such as HD-LCD/HD-DLP) into the receiver

4) Connect the IR TX cable into “IR TX” port of the transmitter; Connect the IR RX cable into “IR RX” port of the receiver.

5) Connect DC 5V power supply to transmitter and receiver.

INSTALLATION

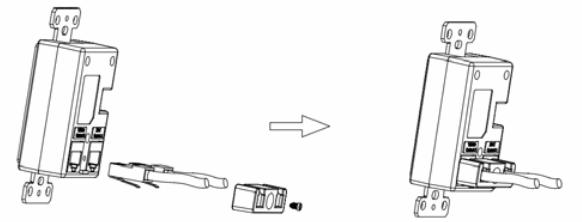

Step1:Use the fixing clip and 4#24x5/16 screws(included in the package) to fix the cat5e/6 cables.

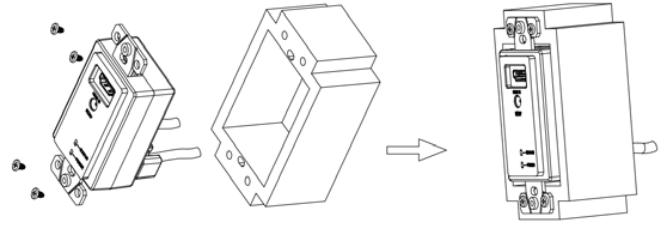

Step2: put the HDMI wall plate extender to your outlex box and fix it

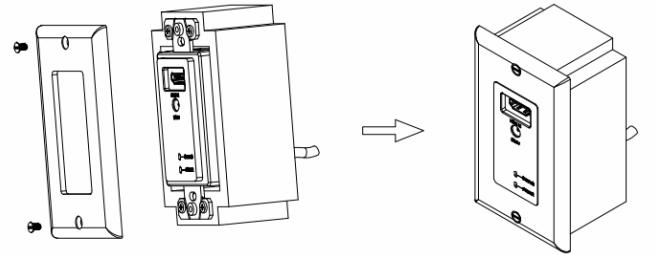

Step3: put the wall plate to the extender and use included 6#32x7/32”screws to fix it
